Husqvarna Chainsaw 545 Mark II

$450.00

Chainsaw 550 XP 545 Mark II - Action image

Chainsaw 550 XP 545 Mark II - SoMe image

Chainsaws

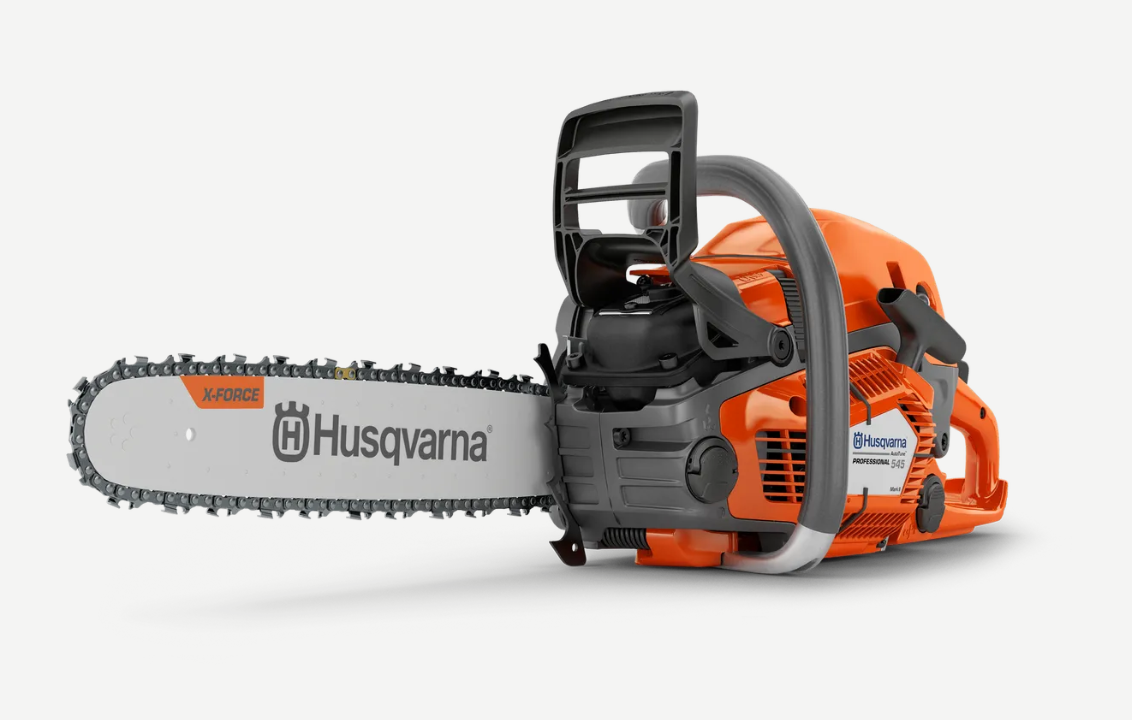

HUSQVARNA 545 Mark II

Name: Husqvarna Chainsaw 545 Mark II
SKU: 1320
Price: 450.00 USD
Availability: InStock

$669.99MSRP

50.1 cm³

Cylinder displacement

3.6 hp

Output shaft power¹

62.7 fts

Chain speed at max power

Nose type

Sprocket nose
Spikes

Mounted
Chain type

SP33G
Bar length (inch)

20 in

Shipping & Returns

Best in class cutting capacity.

The second generation of Husqvarna’s 545 chainsaw is a 50cc unit that’s ready for your felling, limbing and bucking of small and midsize trees. Designed for professional forestry and tree care crews, this durable saw has improved power and a slimmed-down design. A host of innovative features guarantee comfortable and efficient operation, season after season

Features

AutoTune

Automatic engine setting with AutoTune

Magnesium crankcase

Magnesium crankcase designed for professional use

Specifications

Compare specifications and features with similar Husqvarna products.

Compare

Engine	20″ SN .325″ 1,3 mm SP33G SKU: 967 69 06‑02	16″ SN .325″ 1,5 mm S35G SKU: 967 69 06‑16	18″ SN .325″ 1,5 mm S35G SKU: 967 69 06‑18	20″ SN .325″ 1,3 mm SP33G SKU: 967 69 06‑28	16″ SN .325″ 1,3 mm SP33G SKU: 967 69 06‑36	18″ SN .325″ 1,3 mm SP33G SKU: 967 69 06‑38	20″ SN .325″ 1,3 mm SP33G SKU: 967 69 06‑40
Chain speed at max power	62.7 fts	62.7 fts	62.7 fts	62.7 fts	62.7 fts	62.7 fts	62.7 fts
Cylinder displacement	50.1 cm³	50.1 cm³	50.1 cm³	50.1 cm³	50.1 cm³	50.1 cm³	50.1 cm³
Output shaft power ¹	3.6 hp	3.6 hp	3.6 hp	3.6 hp	3.6 hp	3.6 hp	3.6 hp
Torque, max.	2.95 Nm	2.95 Nm	2.95 Nm	2.95 Nm	2.95 Nm	2.95 Nm	2.95 Nm
Torque, max. at rpm	7,200 rpm	7,200 rpm	7,200 rpm	7,200 rpm	7,200 rpm	7,200 rpm	7,200 rpm
Clutch engagement speed (±120)	3,900 rpm	3,900 rpm	3,900 rpm	3,900 rpm	3,900 rpm	3,900 rpm	3,900 rpm
Electrode gap	0.02 in	0.02 in	0.02 in	0.02 in	0.02 in	0.02 in	0.02 in
Idling speed	2,800 rpm	2,800 rpm	2,800 rpm	2,800 rpm	2,800 rpm	2,800 rpm	2,800 rpm
Ignition module air gap	0.01 in	0.01 in	0.01 in	0.01 in	0.01 in	0.01 in	0.01 in
Maximum power speed	9,900 rpm	9,900 rpm	9,900 rpm	9,900 rpm	9,900 rpm	9,900 rpm	9,900 rpm
Oil pump type	Adjustable flow, no flow at idle	Adjustable flow, no flow at idle	Adjustable flow, no flow at idle	Adjustable flow, no flow at idle	Adjustable flow, no flow at idle	Adjustable flow, no flow at idle	Adjustable flow, no flow at idle
Spark Plug	NGK CMR6H	NGK CMR6H	NGK CMR6H	NGK CMR6H	NGK CMR6H	NGK CMR6H	NGK CMR6H
Equipment
Recommended bar length, min	13 in	13 in	13 in	13 in	13 in	13 in	13 in
Pitch	.325″	.325″	.325″	.325″	.325″	.325″	.325″
Recommended bar length, max	20 in	20 in	20 in	20 in	20 in	20 in	20 in
Chain type	SP33G	S35G	S35G	SP33G	SP33G	SP33G	SP33G
Bar length	50 cm	40 cm	45 cm	50 cm	40 cm	45 cm	50 cm
Bar length (inch)	20 in	16 in	18 in	20 in	16 in	18 in	20 in
Sprocket type	Rim 7	Rim 7	Rim 7	Rim 7	Rim 7	Rim 7	Rim 7
Gauge	.050″	.058″	.058″	.050″	.050″	.050″	.050″
Dimensions
Weight (excl. cutting equipment)	11.7 lbs	11.7 lbs	11.7 lbs	11.7 lbs	11.7 lbs	11.7 lbs	11.7 lbs
Sound and noise
Sound pressure level at operators ear	106 dB(A)	106 dB(A)	106 dB(A)	106 dB(A)	106 dB(A)	106 dB(A)	106 dB(A)
Sound power level, guaranteed (LWA)	115 dB(A)	115 dB(A)	115 dB(A)	115 dB(A)	115 dB(A)	115 dB(A)	115 dB(A)
Sound power level, measured	113 dB(A)	113 dB(A)	113 dB(A)	113 dB(A)	113 dB(A)	113 dB(A)	113 dB(A)
Vibration
Equivalent vibration level (ahv, eq) rear handle	4.6 m/s²	4.6 m/s²	4.6 m/s²	4.6 m/s²	4.6 m/s²	4.6 m/s²	4.6 m/s²
Equivalent vibration level (ahv, eq) front handle	4 m/s²	4 m/s²	4 m/s²	4 m/s²	4 m/s²	4 m/s²	4 m/s²
Lubricant
Oil tank volume	0.68 US pint	0.68 US pint	0.68 US pint	0.68 US pint	0.68 US pint	0.68 US pint	0.68 US pint
Lubricant type (Engine)	Husqvarna 2 stroke or equiv. at 50:1	Husqvarna 2 stroke or equiv. at 50:1	Husqvarna 2 stroke or equiv. at 50:1	Husqvarna 2 stroke or equiv. at 50:1	Husqvarna 2 stroke or equiv. at 50:1	Husqvarna 2 stroke or equiv. at 50:1	Husqvarna 2 stroke or equiv. at 50:1
Emission
Exhaust emissions (CO₂ EU V) ²	844 g/kWh	844 g/kWh	844 g/kWh	844 g/kWh	844 g/kWh	844 g/kWh	844 g/kWh

Reviews

4.4 out of 5 stars. 107 reviews

Services

Owner support

Disclaimer:

¹Output shaft power: Net power rating as per ISO 7293, at specified RPM
²Exhaust emissions (CO₂ EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
